GP®1 Gas Barrier is a multi-layer, low-density polyethylene membrane, reinforced with a polypropylene grid with integral aluminium foil. GP®1 is specifically designed and manufactured to perform as a Methane, Carbon Dioxide, Radon, Ground Gas, air & moisture protection system.

GP®1 is a high quality proprietary gas resistant damp proof membrane, manufactured from low density reinforced polyethylene (LDPE). This products is ideal for use on sites where ground gas contamination is present.

GP®1 incorporates an aluminium foil core, offering additional protection against Methane and Carbon Dioxide in addition to Radon and Bulk Ground gas. GP®1 can be used on any site where carbon dioxide, methane, bulk ground gas and/or radon is present up to and including BS8485:2015 + A1 2019 Characteristic situation (CS) 6. The barrier is sufficiently resistant to the ingress of harmful gases into a building.

Item needs to be quoted for! Please email sales@straight2site.co.uk with your full enquiry
Full address and contact details will need to be provided
Approx 3 working day lead time for delivery

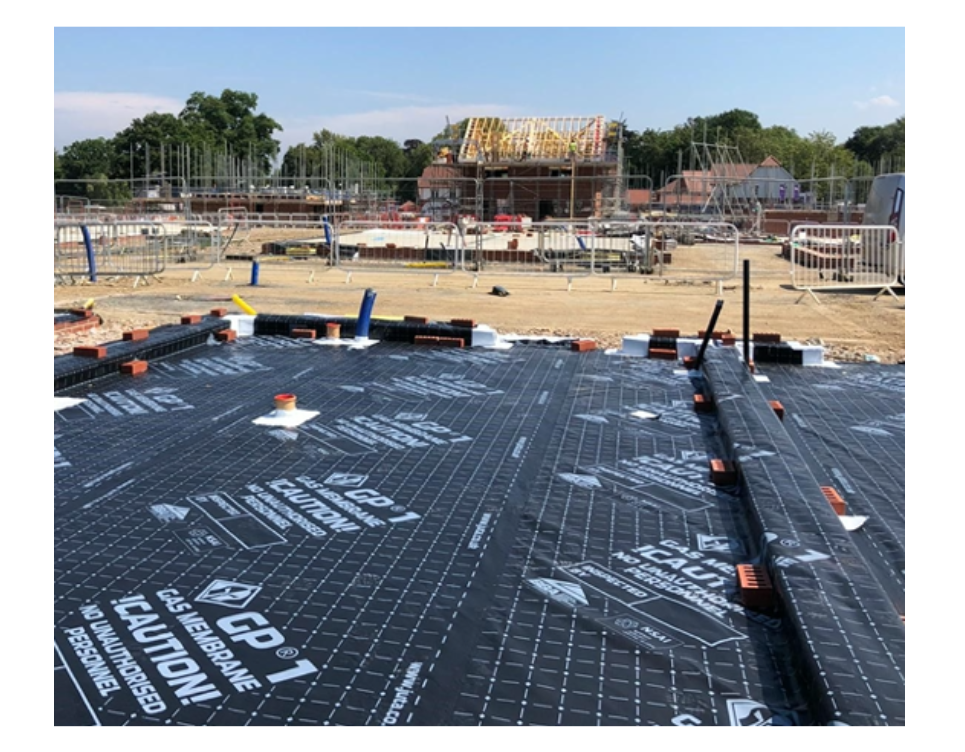

JUTA GP1 (2m x 50m Roll) (£ - POA)

Name: JUTA GP1 (2m x 50m Roll) (£ - POA)
SKU: JUTAGP1
Price: 0.01 GBP
Availability: InStock

SKU: JUTAGP1

£0.01

Sales Tax Included

Quantity

Color	Black
Material	Polypropylene Aluminium
Shape	Rectangular - supplied in roll form.
Size	2 x 50 m x 0.6 mm
Warranty	60 Year (minimum)
Uniclass 2015	Pr_25_57_65
CAWS	J40/35 Loose laid plastics or rubber gas retardant damp proofing
	D21/38 Gas-retardant membranes
	J40/140 Loose laid plastics or rubber sheet gas retardant damp proofing
	J40/145 Loose laid weldable polyethylene gas retardant damp proofing
	D21/350 Gas-retardant membrane
Product range	Gas Barriers

Material	Low-density polyethylene (PE-LD).
Purpose	Gas Retardance.
Standard	To BS 8485: 2015 + A1 2019.
Performance Characteristics
Tensile Strength	480 N/50 mm.
Tear Resistance	330 N, 400 N.
Elongation to break	20%.
Resistant to underground gases	Methane - 0.09 ml/m2/day atm. Carbon Dioxide - 0.09 ml/m²/day/atm. Radon - 8 x 10(-15).
Third party certification	British Board of Agrément (BBA) Certificate. - Certificate No. 12/4912.
	CE Mark - EN 13967.
Form	Polypropylene reinforcing grid with aluminium foil.
Recycled content	0%

Characteristics	Test Method	Unit
Thickness	EN 1849-2	0.6mm
Thickness - between Scrim	BS EN ISO 9863-1:2016	0.4mm
Width	EN 1849-2	Various (2m minimum)
Length	EN 1849-2	Various (50m minimum)
Weight	EN 1849-2	370 G/M2

Characteristics	Test Method	Unit
Resistance to Static Load	EN 12730-B	20 Kg
Tensile Strength (MD)	EN 12311-1	600 N/50mm
Tensile Strength (CMD)	EN 12311-1	480 N/50mm
Tensile Elongation (MD)	EN 12310-1	20 %
Tensile Elongation (CMD)	EN 12310-1	20 %
Puncture Resistance	EN 12236	1.25 kN
Resistance to Tearing (Nail Shank) MD	EN 12310-1	400 N
Resistance to Tearing (Nail Shank) CMD	EN 12310-1	400 N

Characteristics	Test Method	Unit
Transmission Rate of Volatile Liquids - Diesel	ISO 6179:2010 (B)	0.246 g/m2/h
Transmission Rate of Volatile Liquids - Xylene	ISO 6179:2010 (B)	0.571 g/m2/h
Transmission Rate of Volatile Liquids - Toluene	ISO 6179:2010 (B)	0.583 g/m2/h
Transmission Rate of Volatile Liquids - Petrol	ISO 6179:2010 (B)	0.135 g/m2/h

Characteristics	Test Method	Unit
Methane Permeability	BS EN ISO 15105-1	<0.09 ml/m2/day/atm
Carbon Dioxide Permeability	BS EN ISO 15105-1	<0.09 ml/m2/day/atm
Radon Permeability	K124/02/95	8.0 x 10-15 m2/s
Hydrogen Sulphide Permeability	BE EN ISO 15105-1	<0.1 ml/m2/day/atm

Can be used on any site in accordance with BS8485:2015 and NHBC requirements where carbon dioxide, methane or radon is present up to and including CIRIA 665 SITUATION 6. The barrier is sufficiently resistant to the ingress of harmful gasses into a building. On more heavily contaminated sites a passive or active venting system may be required to dilute the gasses down to acceptable levels and specific design advice should be sought.

On more heavily contaminated sites, a passive or active venting system in addition to a gas barrier may be required to dilute the gases down to acceptable levels and specific design advice
should be sought.

JUTA UK – radon, ground gas, vapour, air and moisture barrier characteristic properties:

High Chemical Resistance

High resistance to Ground Gasses

Long Term Durability (Performance guaranteed for the lifetime of the building)

Compatible with all building materials

Manufactured to meet the most up to date British Standards and guidance.

GP®1 should be installed in accordance with the product installation guidelines, and in accordance with BS 8485:2015.
CE Mark - EN13967:2012 (A1 2017)

NHBC Standards Compliant

Conforms to BS 8485:2015 + A1 2019

BBA Certified - Certificate No. 20/5728

Characteristics	Test method	Unit
Water Column	EN 20811	>300
Resistance to Water Penetration	EN 18967, EN 1928	PASS
Water Tightness	EN 1296, EN 1367, EN 1928	PASS
